JDK17+SpringBoot3.3.6+Netty4.1.115实现企业级支付系统POS网关签到功能

itbeien2025年3月3日大约 9 分钟

JDK17+SpringBoot3.3.6+Netty4.1.115实现企业级支付系统POS网关签到功能

我在这篇文章JDK17+SpringBoot3.4.0+Netty4.1.115搭建企业级支付系统POS网关中已经将POS网关的框架搭建流程进行了讲解，今天实现POS网关中的第一个功能签到。我们作为用户经常会被商家拿着智能POS机扫码完成支付，或者我们主动扫智能POS机上的二维码完成支付功能。其实POS智能终端完成支付功能之前需要做一些准备工作，这些工作是为了更好的实现支付功能，那么今天实现的签到功能就是POS机开机后需要做的第一件事情。签到主要是为了从后端网关系统获取工作密钥还有当天的批次号。接下来我们来看具体的代码实现流程吧

完整代码在文章最后，如果觉得本篇文章对你有用，记得点赞、关注、收藏哦。你的支持是我持续更新的动力!

签到功能有多种实现方式第一种是基于自定义协议进行实现，第二种基于Netty支持的开源协议进行实现，我们今天用自定义协议方式实现签到功能。下图为签到功能的整体代码结构

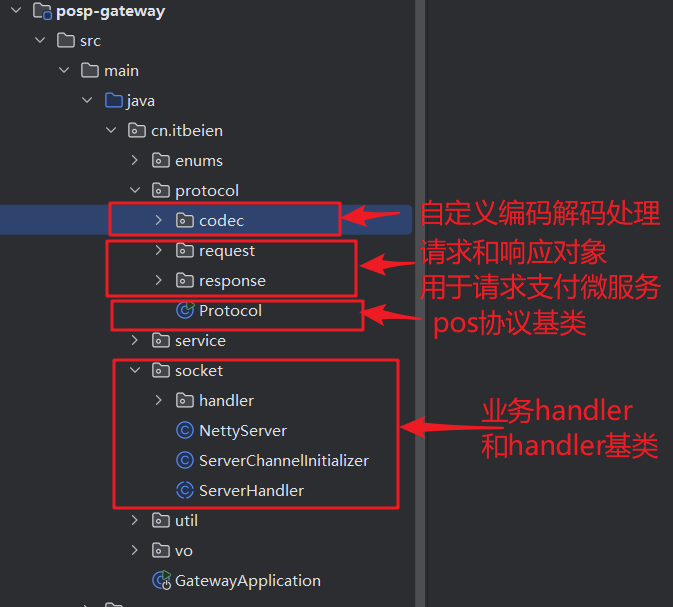

1 协议设计和实现

消息协议整体分为消息头和消息体，协议中需要设定整体协议的长度，客户端按照预先定义好的长度进行数据发送。服务端再按照协议规则进行解析。POS前置系统只需要实现两个功能，协议转换和转发，具体的签到和业务功能在支付交易系统中实现。

1.1 如何确认当前交易

智能POS机上有很多功能，签到、签退、版本更新、心跳、支付、退款那我们是如何知道当前是在做什么交易。我们在自定义协议中是通过指令CommandID+交易类型进行识别，下图为具体的指令设计

指令	说明
0x80000001	签到
0x80000012	签退
0x8000000B	交易：交易类型 201:消费 301:消费撤销 601: 余额查询 501:重打印 401:退货
0x8000000A	软件更新

1.2 代码实现

1.2.1 协议封装

package cn.itbeien.protocol;


import cn.itbeien.enums.CommandIDEnums;
import cn.itbeien.protocol.request.RegistrationRequest;
import cn.itbeien.util.ByteUtil;
import lombok.extern.slf4j.Slf4j;

import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

/**
 * @author itbeien
 * 项目网站：https://www.itbeien.cn
 * 公众号：贝恩聊架构
 * 全网同名，欢迎小伙伴们关注
 * 消息协议类V1.0
 * Copyright© 2024 itbeien
 */
@Slf4j
public class Protocol {

	private final static Map<Integer, Class<? extends Protocol>> packetType = new ConcurrentHashMap<>();

	static {
		packetType.put(CommandIDEnums.SignIn.getCommand(), RegistrationRequest.class);
	}

	/**
	 * 消息头长度
	 */
	public static final int HEADER_LENGTH = 62;
	/**
	 * 消息总长度
	 */
	private int length;

	/**
	 * 消息流水号,标识POS终端的每笔交易和服务端交易一一对应
	 */
	private int sequenceID;

	/**
	 * 设备逻辑编号
	 */
	private String deviceLogicID;

	/**
	 * 设备物理编号
	 */
	private String devicePhysicalID;

	/**
	 * 商户编号,预留字段
	 */
	private String merchantId;

	/**
	 * 批次号
	 */
	private int batchID;

	/**
	 * 交易流水号
	 */
	private int transactionID;

	/**
	 * 操作员
	 */
	private String opNumber;

	/**
	 * 版本号
	 */
	private String version;

	/**
	 * 消息体
	 */
	private byte[] body;

	public Protocol() {

	}

	public int getLength() {
		return length;
	}

	public void setLength(int length) {
		this.length = length;
	}

	public int getSequenceID() {
		return sequenceID;
	}

	public void setSequenceID(int sequenceID) {
		this.sequenceID = sequenceID;
	}

	public String getDeviceLogicID() {
		return deviceLogicID;
	}

	public void setDeviceLogicID(String deviceLogicID) {
		this.deviceLogicID = deviceLogicID;
	}



	public String getMerchantId() {
		return merchantId;
	}

	public void setMerchantId(String merchantId) {
		this.merchantId = merchantId;
	}

	public int getBatchID() {
		return batchID;
	}

	public void setBatchID(int batchID) {
		this.batchID = batchID;
	}

	public int getTransactionID() {
		return transactionID;
	}

	public void setTransactionID(int transactionID) {
		this.transactionID = transactionID;
	}

	public String getOpNumber() {
		return opNumber;
	}

	public void setOpNumber(String opNumber) {
		this.opNumber = opNumber;
	}

	public String getVersion() {
		return version;
	}

	public void setVersion(String version) {
		this.version = version;
	}


	public String getDevicePhysicalID() {
		return devicePhysicalID;
	}

	public void setDevicePhysicalID(String devicePhysicalID) {
		this.devicePhysicalID = devicePhysicalID;
	}

	public byte[] getBody() {
		return body;
	}

	public void setBody(byte[] body) {
		this.body = body;
	}


	public static Class<? extends Protocol> get(Integer command) {
		return packetType.get(command);
	}

	public static void main(String[] args) {
		System.out.println(ByteUtil.getBytes(12345678).length);
	}

}

1.2.2 协议解码代码

协议的编解码为POSP网关自定义的编解码规则，这里用到了Netty中的ByteToMessageDecoder和MessageToByteEncoder作为自定义协议编解码的父类。具体代码实现如下

package cn.itbeien.protocol.codec;

import cn.itbeien.protocol.Protocol;
import cn.itbeien.util.ByteUtil;
import cn.itbeien.util.SerializationTool;
import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.ByteToMessageDecoder;
import lombok.extern.slf4j.Slf4j;

import java.util.List;

import static cn.itbeien.protocol.Protocol.HEADER_LENGTH;


/**
 * @author itbeien
 * 项目网站：https://www.itbeien.cn
 * 公众号：贝恩聊架构
 * 全网同名，欢迎小伙伴们关注
 * 反序列化 字节数组->对象
 * Copyright© 2024 itbeien
 */
@Slf4j
public class ProtocolDecode extends ByteToMessageDecoder{
    @Override
    protected void decode(ChannelHandlerContext channelHandlerContext, ByteBuf byteBuf, List<Object> list) throws Exception {
        int readable = byteBuf.readableBytes();
        if (readable < 62) {
            return;
        }
        // 将ByteBuf转换为byte[]
        byte[] data = new byte[readable];
        byteBuf.readBytes(data);
        byte[] body = ByteUtil.getValue(data, HEADER_LENGTH, readable - HEADER_LENGTH);
        int command = ByteUtil.getInt(ByteUtil.getValue(body, 0, 4));
        log.info("开始解析协议");
        list.add( SerializationTool.deserialize(data,Protocol.get(command)) );
    }
}

1.2.3 协议编码代码

package cn.itbeien.protocol.codec;

import cn.itbeien.protocol.Protocol;
import cn.itbeien.util.SerializationTool;
import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.MessageToByteEncoder;
import lombok.extern.slf4j.Slf4j;


/**
 * @author itbeien
 * 项目网站：https://www.itbeien.cn
 * 公众号：贝恩聊架构
 * 全网同名，欢迎小伙伴们关注
 * 序列化 对象->字节数组
 * Copyright© 2024 itbeien
 */
@Slf4j
public class ProtocolEncode extends MessageToByteEncoder<Protocol> {

    @Override
    protected void encode(ChannelHandlerContext channelHandlerContext, Protocol protocol, ByteBuf byteBuf) throws Exception {
        byte[] data = SerializationTool.serialize(protocol);
        byteBuf.writeBytes(data);
    }
}

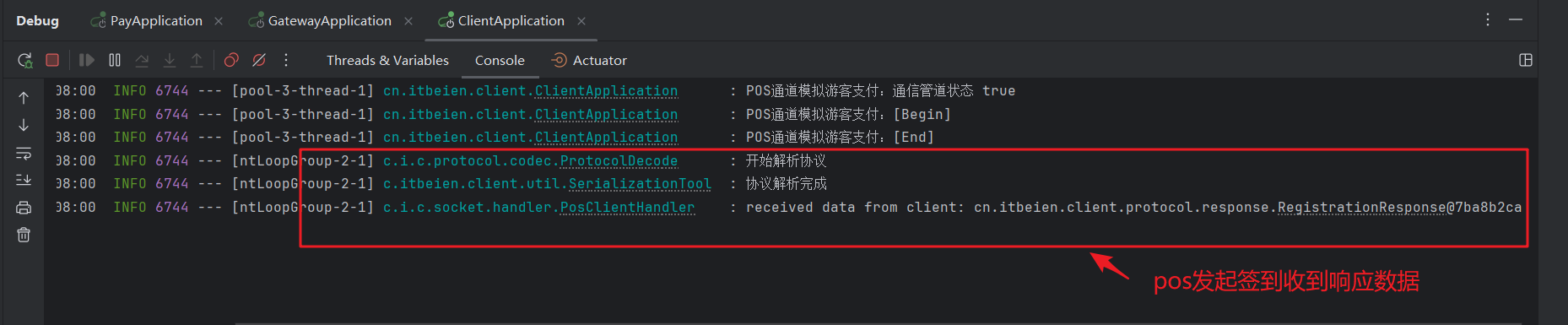

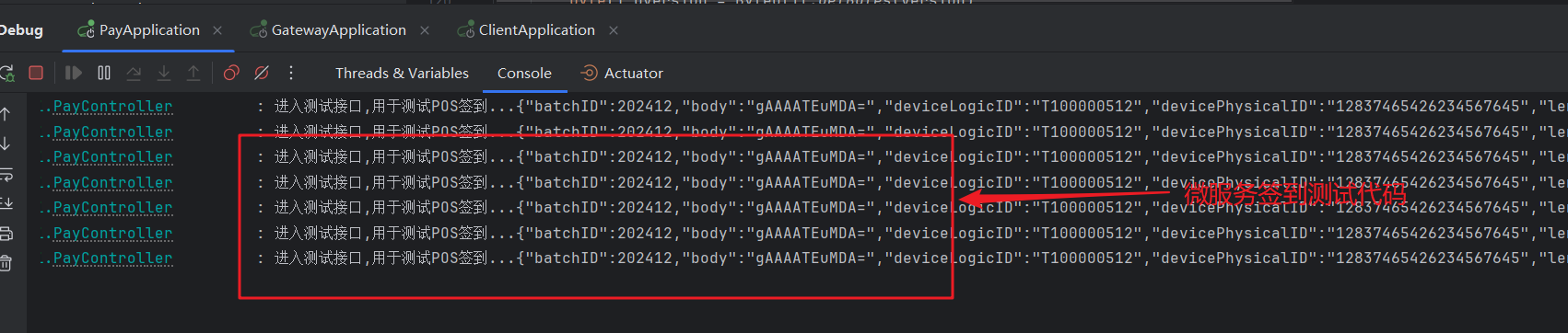

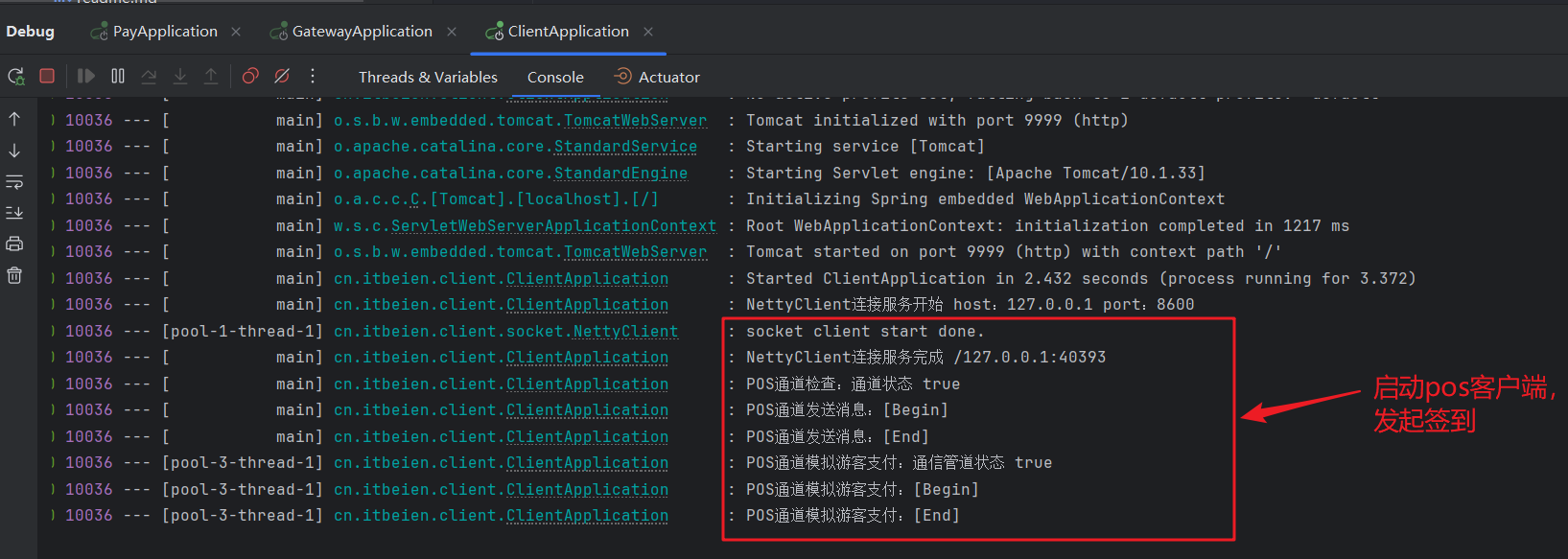

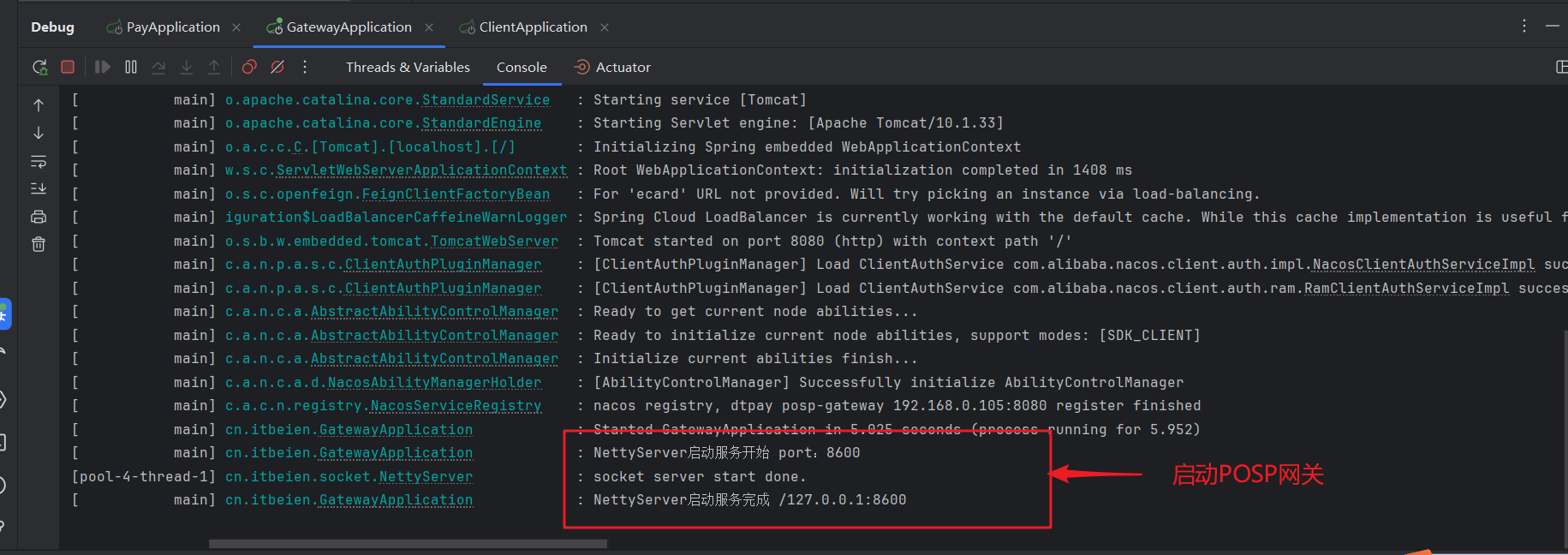

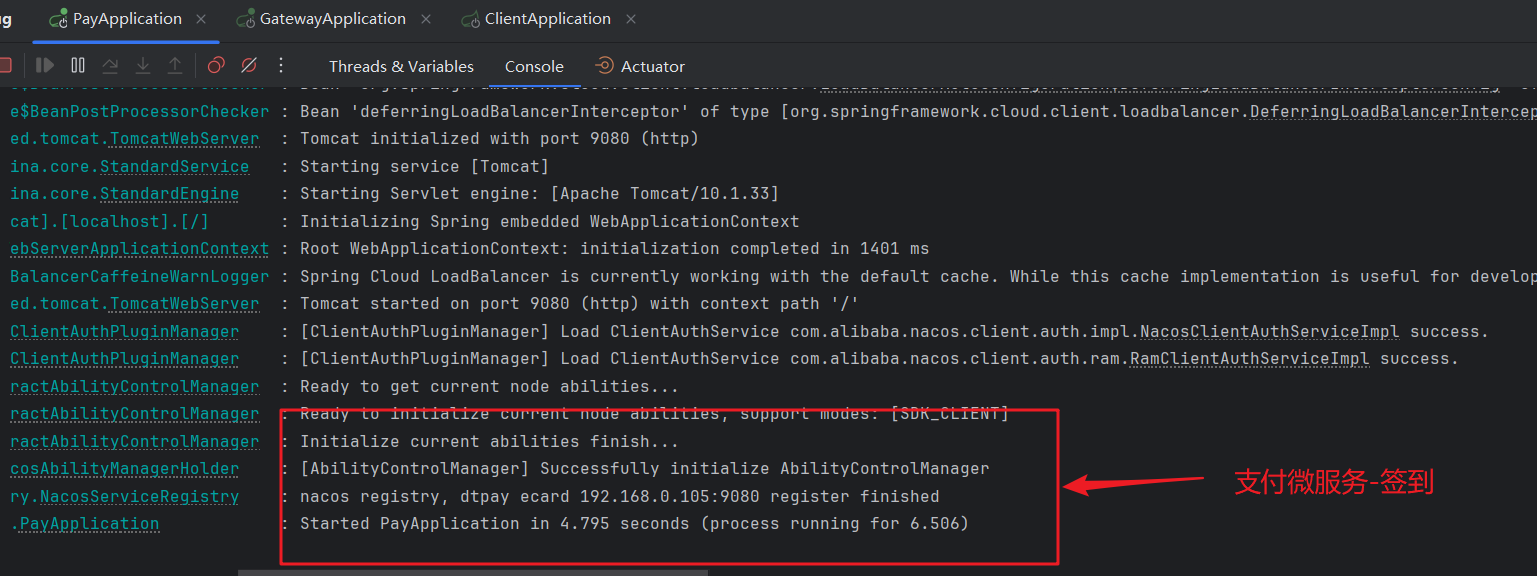

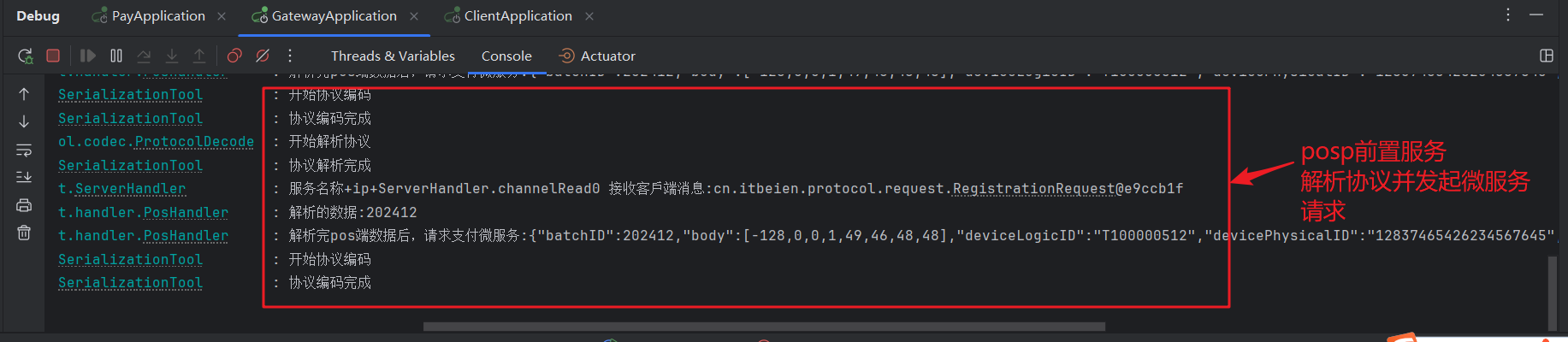

2 功能测试

2.1 POS客户端代码实现

下面为部分代码，完整代码见文章最后

package cn.itbeien.client;

import cn.itbeien.client.protocol.Protocol;
import cn.itbeien.client.socket.NettyClient;
import cn.itbeien.client.util.ByteUtil;
import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.Channel;
import io.netty.channel.ChannelPipeline;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

import jakarta.annotation.Resource;
import java.util.concurrent.*;


/**
 * @author itbeien
 * 项目网站：https://www.itbeien.cn
 * 公众号：贝恩聊架构
 * 全网同名，欢迎小伙伴们关注
 * Copyright© 2024 itbeien
 */
@SpringBootApplication
public class ClientApplication implements CommandLineRunner {
    @Resource
    private NettyClient nettyClient;
    private static Logger logger = LoggerFactory.getLogger(ClientApplication.class);
    private static ExecutorService executorService = Executors.newFixedThreadPool(2);
    private ScheduledExecutorService scheduledExecutorService = Executors.newScheduledThreadPool(1);

    public static void main(String[] args) {
        SpringApplication.run(ClientApplication.class, args);
    }

    @Override
    public void run(String... args) throws Exception {
        // 1. 启动socket连接
        logger.info("NettyClient连接服务开始 host：{} port：{}", "127.0.0.1", 8600);

        Future<Channel> future = executorService.submit(nettyClient);
        Channel channel = future.get();
        if (null == channel) throw new RuntimeException("netty client start error channel is null");

        while (!nettyClient.isActive()) {
            logger.info("NettyClient启动服务 ...");
            Thread.sleep(500);
        }
        logger.info("NettyClient连接服务完成 {}", channel.localAddress());

        logger.info("POS通道检查：通道状态 " + nettyClient.isActive());
        //String sendMsg = "{\"amount\":\"100.00\",\"interfaceCode\":\"pay\",\"merchantCode\":\"1000001\",\"payType\":\"js\"}";
        //sendMsg(channel, "pos发起支付交易");
        sendMsg(channel, encodeMsg());//发送支付交易指令
        // Channel状态定时检查；3秒后每5秒执行一次  模拟硬件和软件重连
       /* scheduledExecutorService.scheduleAtFixedRate(() -> {
            while (!nettyClient.isActive()) {//判断是否和服务器连接上
                logger.info("POS通道：通道状态 " + nettyClient.isActive());
                try {
                    logger.info("POS通道：断线重连[Begin]");
                    Channel freshChannel = executorService.submit(nettyClient).get();
                    freshChannel.writeAndFlush("abc");
                } catch (InterruptedException | ExecutionException e) {
                    logger.error("POS通道：断线重连[Error]");
                }
            }
        }, 3, 5, TimeUnit.SECONDS);*/

    }


    public void sendMsg(Channel channel, byte[] msg) {
        try {
            logger.info("POS通道发送消息：[Begin]");
            //Channel channel = executorService.submit(nettyClient).get();
            channel.writeAndFlush(msg);
            logger.info("POS通道发送消息：[End]");
            ChannelPipeline pipelined = channel.pipeline();
            //pipelined.addLast(new ClientHandler());
            // Channel状态定时检查；3秒后每30秒执行一次
            scheduledExecutorService.scheduleAtFixedRate(() -> {
                logger.info("POS通道模拟游客支付：通信管道状态 " + nettyClient.isActive());
                try {
                    logger.info("POS通道模拟游客支付：[Begin]");
                    ByteBuf buf = Unpooled.wrappedBuffer(msg);
                    channel.writeAndFlush(buf);
                    //buf.release();
                    logger.info("POS通道模拟游客支付：[End]");
                } catch (Exception e) {
                    logger.error("POS通道模拟游客支付：异常[Error]");
                }
            }, 3, 30, TimeUnit.SECONDS);

        } catch (Exception e) {
            logger.error("POS通道模拟游客支付：异常");
        }

    }

    public byte[] encodeMsg(){
        Protocol protocol = new Protocol();
        protocol.setBatchID(202412);
        //protocol.setLength(60);//签到消息总长度(消息头+消息体)
        protocol.setDeviceLogicID("T100000512");//T100000512 //T000000001
        protocol.setDevicePhysicalID("12837465426234567645");
        protocol.setMerchantId("2345678924");
        protocol.setOpNumber("bn");
        protocol.setSequenceID(11);
        protocol.setVersion("1.00");
        protocol.setTransactionID(151815);//流水号
        Integer commandId = 0x80000001;//签到
        //Integer commandId = 0x80000012;//签退
        //Integer commandId = 0x00000014;//软件版本更新
        //Integer commandId = 0x8000000B;//交易
        String version = "1.00";
        byte[] bcommandId = ByteUtil.getBytes(commandId);
        byte[] bversion = ByteUtil.getBytes(version);
        //byte[] businessNo = ByteUtil.getBytes(11);
        //short value = 201; //消费
        //short value = 301;//消费撤销
        //short value = 601;//查询
        //short value = 401;//退货
        //short value = 501;//重打印
        //byte b[] = ByteUtil.getBytes(value);
        //byte[] tradeNo = ByteUtil.getBytes(value);
        //String contents ="9996660005778407|5;2;1;1111";//6666661006978001(新卡系统卡BIN);9996660005778407 //消费
        //String contents ="9996660005778407|5;202408;151814" ;//消费撤销
        //String contents ="6666661006978001|5;202405;151800;2" ;//退货
        //String contents ="6666661006978001|5;202405;151800" ;//查询
        //String contents ="9996660005778407|5;202405;151800" ;//6666661006978001 //重打印
        //byte[] content = ByteUtil.getBytes(contents);
        //content = TDes.encryptMode("E4429DEDB7E56E8334C69003".getBytes(), content);
        //byte[] length  = ByteUtil.getBytes(content.length);

        //byte[] extraData = ByteUtil.getBytes(1);
        //byte[] extraDataLength = ByteUtil.getBytes(extraData.length);

        byte[] data = new byte[bcommandId.length + bversion.length ];//提交消息体数据
        //byte[] data = new byte[bcommandId.length + businessNo.length + tradeNo.length + length.length + content.length+extraDataLength.length+extraData.length];//提交消息体数据
        System.arraycopy(bcommandId, 0, data, 0, bcommandId.length);
        System.arraycopy(bversion, 0, data, bcommandId.length, bversion.length);
        //System.arraycopy(businessNo, 0, data, bcommandId.length, businessNo.length);
        //System.arraycopy(tradeNo, 0, data, bcommandId.length+businessNo.length, tradeNo.length);
        //System.arraycopy(length, 0, data, bcommandId.length+businessNo.length+tradeNo.length, length.length);
        //System.arraycopy(content, 0, data, bcommandId.length+businessNo.length+tradeNo.length+length.length, content.length);
        //System.arraycopy(extraDataLength, 0, data, bcommandId.length+businessNo.length+tradeNo.length+length.length+content.length, extraDataLength.length);
        //System.arraycopy(extraData, 0, data, bcommandId.length+businessNo.length+tradeNo.length+length.length+content.length+extraDataLength.length, extraData.length);
        //byte[] signature = TDes.encryptMode("E4429DEDB7E56E8334C69003".getBytes(), data);//签名(对消息体进行签名)
        //Integer signatureLength = signature.length;
        //byte[] bsignatureLength =ByteUtil.getBytes(signatureLength);
        //byte[] data1 =new byte[data.length+signature.length+bsignatureLength.length];//包括签名
        //System.arraycopy(data, 0, data1, 0, data.length);
        //System.arraycopy(bsignatureLength, 0, data1, data.length, bsignatureLength.length);
        //System.arraycopy(signature, 0, data1, data.length+bsignatureLength.length, signature.length);
        //protocol.setBody(data1);
        //protocol.setLength(62+data1.length);//签到消息总长度(消息头+消息体)
        //System.out.println(data.length);
        //System.out.println(data1.length);

        protocol.setBody(data);
        protocol.setLength(62+data.length);

        return protocol.encoder();
    }
}
