SpringBoot3.4.0结合Mybatis-plus实现动态数据源

itbeien2025年3月3日大约 5 分钟

SpringBoot3.4.0结合Mybatis-plus实现动态数据源

上一篇文章01SpringBoot3专栏-SpringBoot3.4.0整合Mybatis-plus和Mybatis我们整合了SpringBoot3.4和Mybatis-plus框架，今天我们来应用SpringBoot和Mybatis-plus的动态数据源功能。随着项目规模的扩大，单一数据源已无法满足复杂业务需求，动态数据源应运而生

完整代码在文章最后，如果觉得本篇文章对你有用，记得点赞、关注、收藏哦。你的支持是我持续更新的动力!

SpringBoot3专栏软件环境

JDK17.0.12
SpringBoot3.4.0
mybatis-plus-spring-boot3-starter3.5.9
IDEA2024.2.0.2

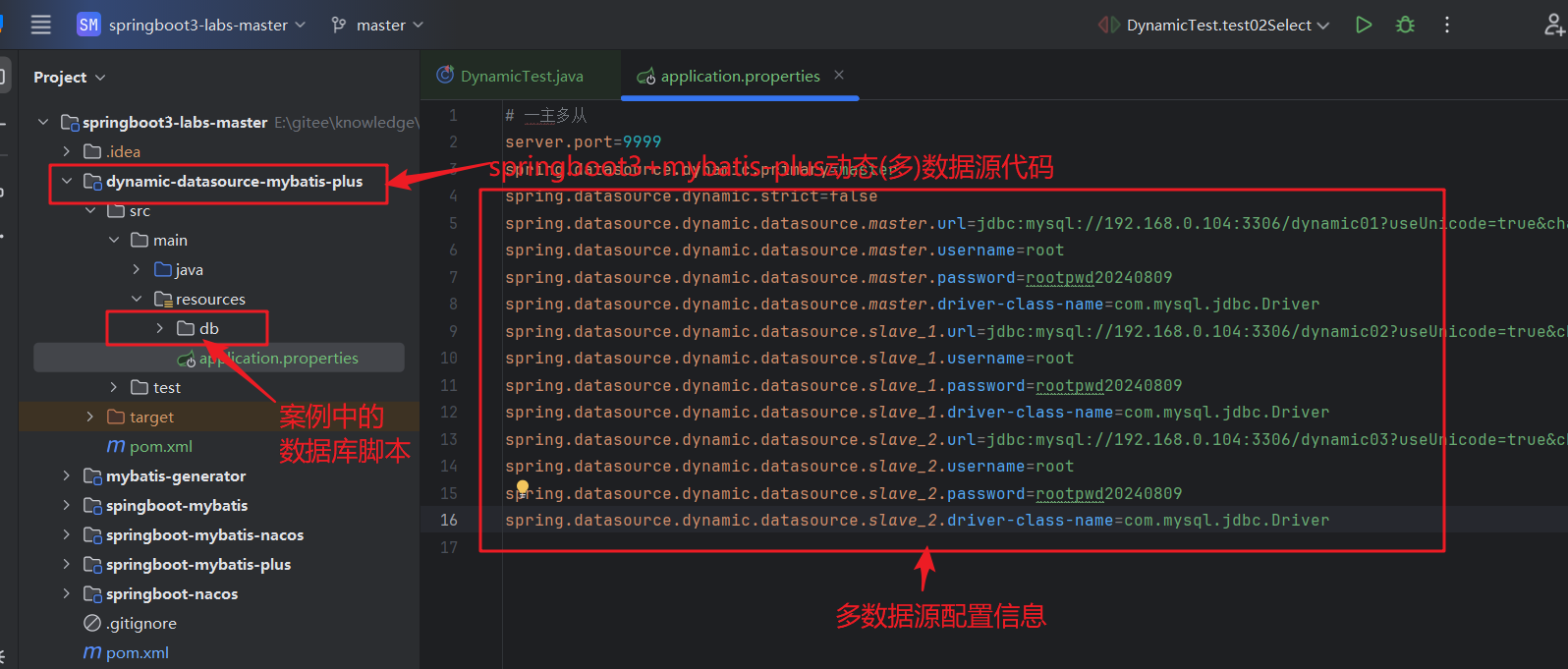

我们先看本篇文章对应的项目结构，请看下图

1 动态数据源项目搭建

1.1 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>cn.itbeien</groupId>
        <artifactId>springboot3-labs-master</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>dynamic-datasource-mybatis-plus</artifactId>
    <properties>
        <dynamic-datasource-spring-boot3-starter-version>4.3.1</dynamic-datasource-spring-boot3-starter-version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-spring-boot3-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>dynamic-datasource-spring-boot3-starter</artifactId>
            <version>${dynamic-datasource-spring-boot3-starter-version}</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

1.2 配置信息

# 一主多从
server.port=9999
spring.datasource.dynamic.primary=master
spring.datasource.dynamic.strict=false
spring.datasource.dynamic.datasource.master.url=jdbc:mysql://192.168.0.104:3306/dynamic01?useUnicode=true&characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&serverTimezone=GMT%2B8
spring.datasource.dynamic.datasource.master.username=root
spring.datasource.dynamic.datasource.master.password=rootpwd20240809
spring.datasource.dynamic.datasource.master.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.dynamic.datasource.slave_1.url=jdbc:mysql://192.168.0.104:3306/dynamic02?useUnicode=true&characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&serverTimezone=GMT%2B8
spring.datasource.dynamic.datasource.slave_1.username=root
spring.datasource.dynamic.datasource.slave_1.password=rootpwd20240809
spring.datasource.dynamic.datasource.slave_1.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.dynamic.datasource.slave_2.url=jdbc:mysql://192.168.0.104:3306/dynamic03?useUnicode=true&characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&serverTimezone=GMT%2B8
spring.datasource.dynamic.datasource.slave_2.username=root
spring.datasource.dynamic.datasource.slave_2.password=rootpwd20240809
spring.datasource.dynamic.datasource.slave_2.driver-class-name=com.mysql.jdbc.Driver

2 代码实现及测试

2.1 dao层和实体类

package cn.itbeien.dynamic.mapper;

import cn.itbeien.dynamic.entity.SysUser;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;

public interface SysUserMapper extends BaseMapper<SysUser> {

}

package cn.itbeien.dynamic.entity;

import lombok.Data;

@Data
public class SysUser {
    private Long id;
    private String name;
    private Integer age;
    private String email;
}

2.2 Service 层中实现动态数据源

package cn.itbeien.dynamic.service;

import cn.itbeien.dynamic.mapper.SysUserMapper;
import com.baomidou.dynamic.datasource.annotation.DS;
import jakarta.annotation.Resource;
import org.springframework.stereotype.Service;

import java.util.List;


/**
 * @author itbeien
 * 项目网站：https://www.itbeien.cn
 * 公众号：贝恩聊架构
 * 全网同名，欢迎小伙伴们关注
 * 没有@DS	默认数据源
 * @DS("dsName") dsName可以为组名也可以为具体某个库的名称
 * Copyright© 2024 itbeien
 */
@Service
public class UserServiceImpl implements UserService{

    @Resource
    private SysUserMapper sysUserMapper;

    /**
     * 没有添加多数据源注解，默认访问主库
     */
    @Override
    public List selectAll() {
        return sysUserMapper.selectList(null);
    }


    /**
     * 添加多数据源注解，访问第一个从库
     */
    @DS("slave_1")
    @Override
    public List selectAllSlave01() {
        return sysUserMapper.selectList(null);
    }

    /**
     * 添加多数据源注解，访问第二个从库
     */
    @DS("slave_2")
    @Override
    public List selectAllSlave02() {
        return sysUserMapper.selectList(null);
    }
}

2.3 单元测试代码

package cn.itbeien.dynamic;

import cn.itbeien.dynamic.entity.SysUser;
import cn.itbeien.dynamic.mapper.SysUserMapper;
import cn.itbeien.dynamic.service.UserService;
import com.baomidou.dynamic.datasource.annotation.DS;
import jakarta.annotation.Resource;
import org.junit.jupiter.api.Assertions;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import java.util.List;

/**
 * @author itbeien
 * 项目网站：https://www.itbeien.cn
 * 公众号：贝恩聊架构
 * 全网同名，欢迎小伙伴们关注
 * 没有@DS	默认数据源
 * @DS("dsName") dsName可以为组名也可以为具体某个库的名称
 * Copyright© 2024 itbeien
 */
@SpringBootTest
public class DynamicTest {
    @Autowired
    private UserService userServiceImpl;

    /**

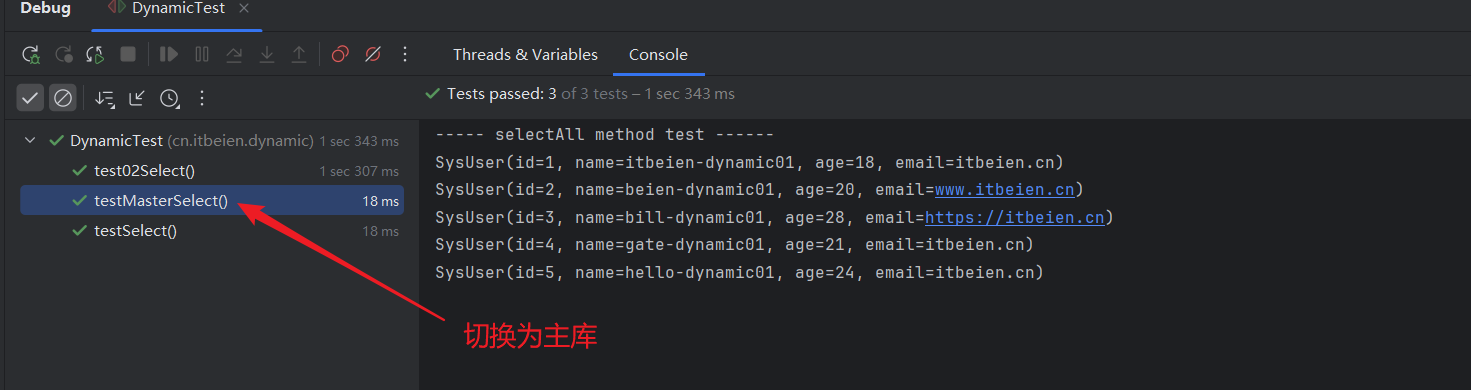

     * 查询master库 dynamic01
     */
    @Test
    public void testMasterSelect() {
        System.out.println(("----- selectAll method test ------"));
        List<SysUser> userList = userServiceImpl.selectAll();
        Assertions.assertEquals(5, userList.size());
        userList.forEach(System.out::println);
    }

    /**

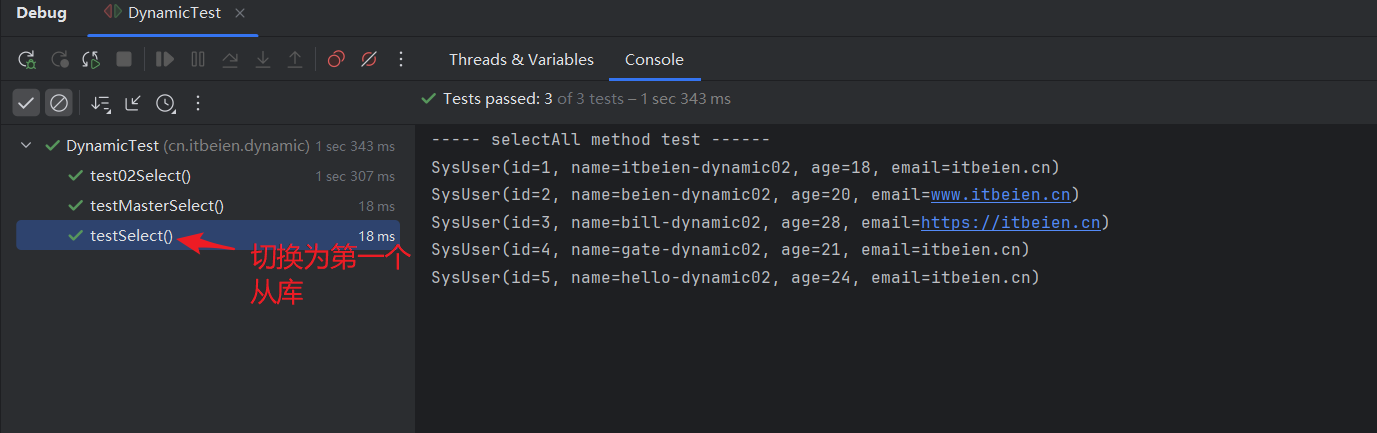

     * 查询slave_1库 dynamic02
     */
    @Test
    public void testSelect() {
        System.out.println(("----- selectAll method test ------"));
        List<SysUser> userList = userServiceImpl.selectAllSlave01();
        Assertions.assertEquals(5, userList.size());
        userList.forEach(System.out::println);
    }


    /**

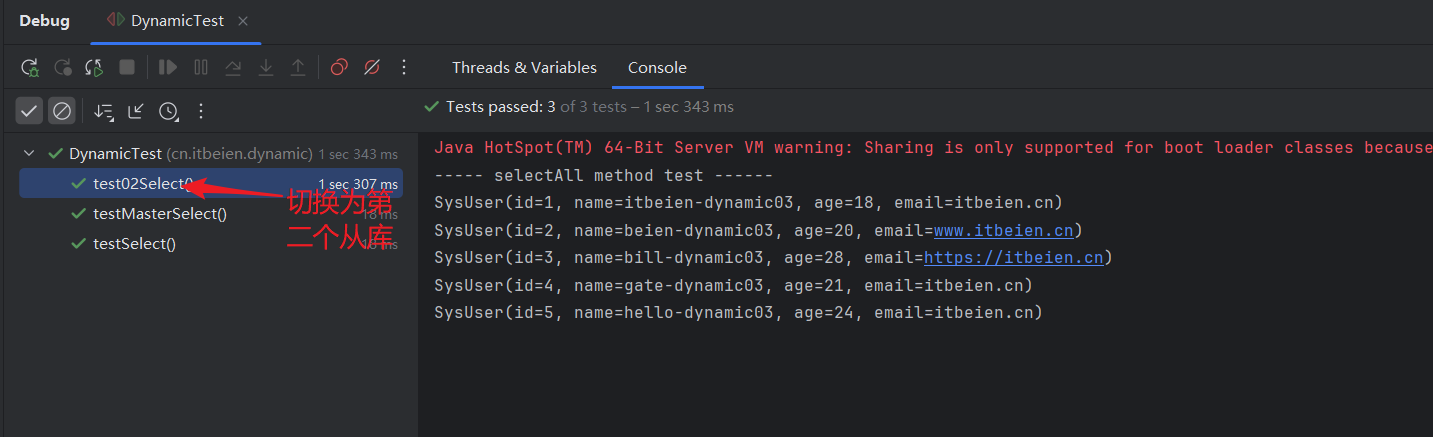

     * 查询slave_2库 dynamic03
     */
    @Test
    public void test02Select() {
        System.out.println(("----- selectAll method test ------"));
        List<SysUser> userList = userServiceImpl.selectAllSlave02();
        Assertions.assertEquals(5, userList.size());
        userList.forEach(System.out::println);
    }
}
