SpringBoot3.4.0集成Canal1.1.7实现MySQL实时同步数据到Redis

itbeien2025年3月3日大约 7 分钟

SpringBoot3.4.0集成Canal1.1.7实现MySQL实时同步数据到Redis

贝恩聊架构-SpringBoot3专栏内容定位主要为SpringBoot3整合各大框架和中间件，通过输出入门技术文章和基于源代码的技术案例，让读者基于本系列技术文章和源代码快速掌握SpringBoot3和各大开源框架、中间件的整合应用。给技术开发者节约环境搭建和框架整合所耗费的时间，开发人员都知道在框架整合的过程中会遇到各种技术问题和环境问题，所以参考已有搭建好的框架及功能能大大提高学习和工作效率。

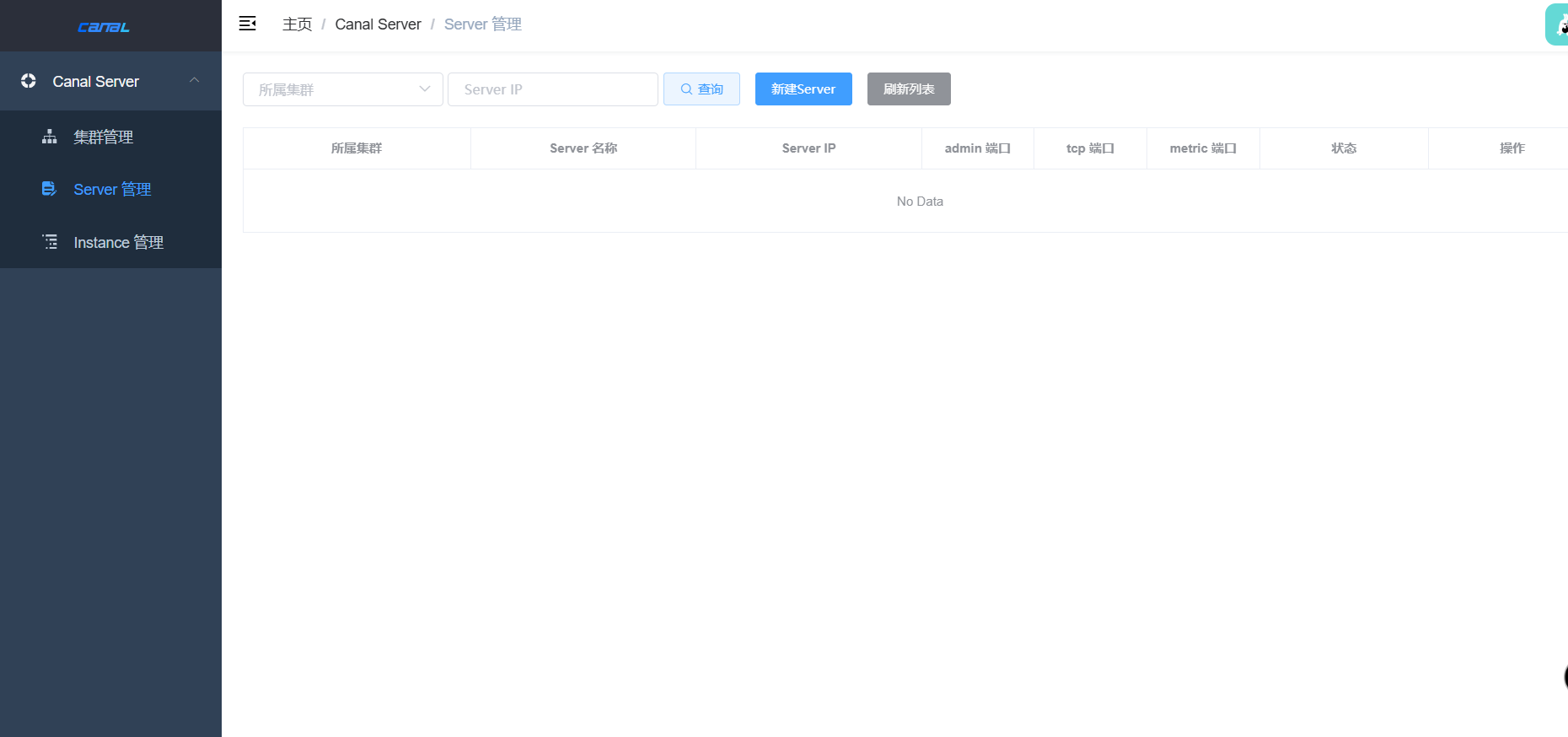

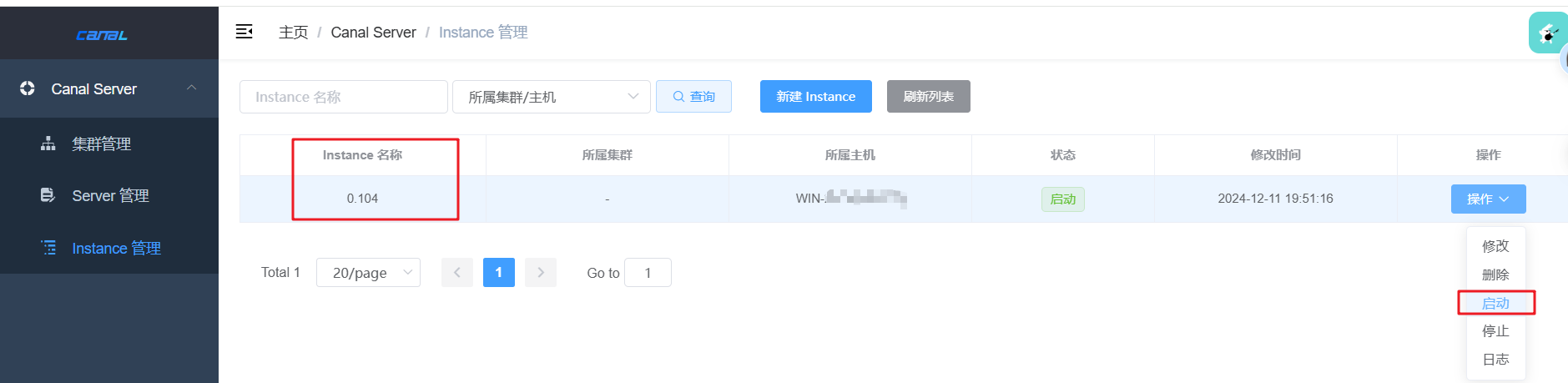

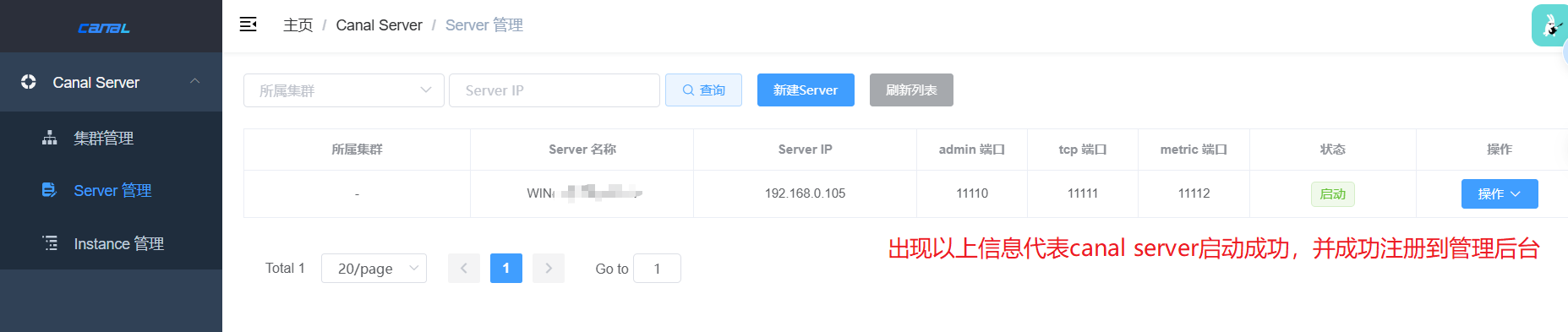

Canal1.1.7环境搭建可以看上一篇文章MySQL增量数据同步利器Canal1.1.7环境搭建流程，今天我们基于SpringBoot3.4.0、Canal1.1.7、MySQL5.7.x、Redis6.x完成数据库业务数据到Redis分布式缓存的同步

基于MySQL日志增量订阅和消费的业务包括

数据库镜像
数据库实时备份
索引构建和实时维护(拆分异构索引、倒排索引等)
业务 cache 刷新
带业务逻辑的增量数据处理

完整代码在文章最后，如果觉得本篇文章对你有用，记得点赞、关注、收藏哦。你的支持是我持续更新的动力!

SpringBoot3专栏软件环境

JDK17.0.12
SpringBoot3.4.0
redisson-spring-boot-starter3.38.1
Redis6.x
Canal-Server1.1.7
Canal-Admin1.1.7
Canal-Client1.1.7
IDEA2024.2.0.2

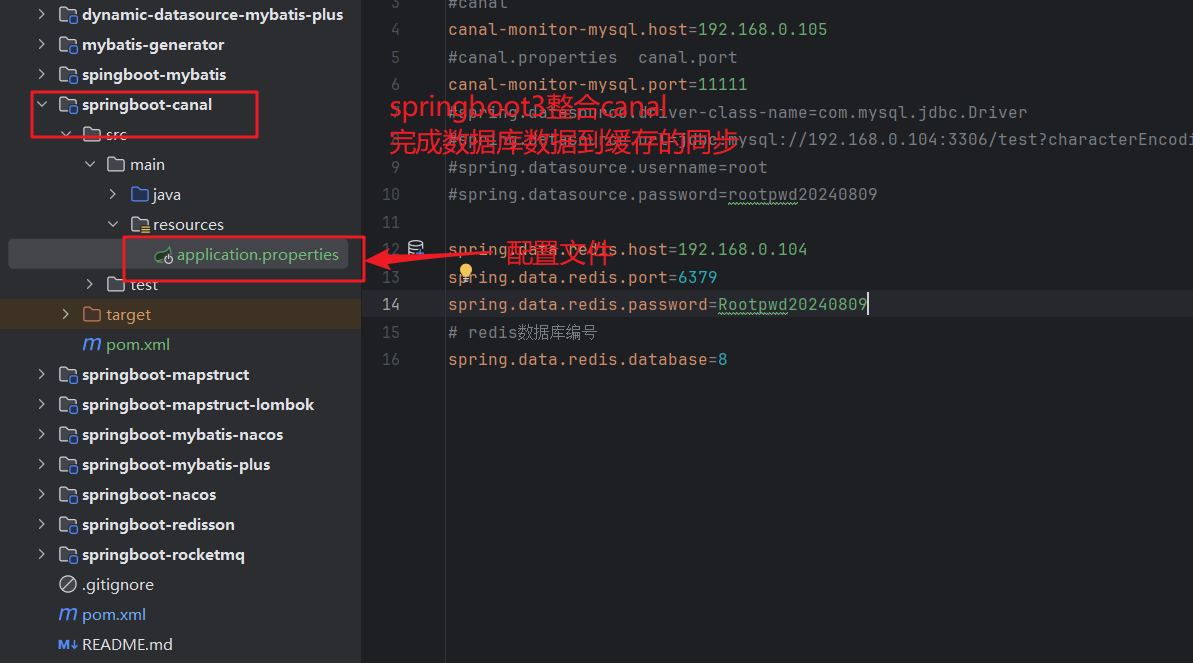

我们先看本篇文章对应的项目结构，请看下图

1 项目搭建

1.1 Canal项目依赖项

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>cn.itbeien</groupId>
        <artifactId>springboot3-labs-master</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>springboot-canal</artifactId>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <canal.client-version>1.1.7</canal.client-version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.redisson</groupId>
            <artifactId>redisson-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.otter</groupId>
            <artifactId>canal.client</artifactId>
            <version>${canal.client-version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.otter</groupId>
            <artifactId>canal.protocol</artifactId>
            <version>${canal.client-version}</version>
        </dependency>
       <!-- <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>-->
    </dependencies>
</project>

1.2 配置信息

#application.properties
server.port=2001
server.servlet.context-path=/canal
#canal
canal-monitor-mysql.host=192.168.0.105
#canal.properties  canal.port
canal-monitor-mysql.port=11111

spring.data.redis.host=192.168.0.104
spring.data.redis.port=6379
spring.data.redis.password=Rootpwd20240809
# redis数据库编号
spring.data.redis.database=8

1.3 代码实现

canal实时从mysql获取数据，同步到分布式缓存redis，完成业务缓存刷新

package cn.itbeien.canal.util;


import cn.itbeien.canal.entity.SysUser;
import com.alibaba.fastjson.JSON;
import com.alibaba.otter.canal.client.CanalConnector;
import com.alibaba.otter.canal.client.CanalConnectors;
import com.alibaba.otter.canal.protocol.CanalEntry;
import com.alibaba.otter.canal.protocol.Message;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

import java.net.InetSocketAddress;
import java.util.List;


/**
 * @author itbeien
 * 项目网站：https://www.itbeien.cn
 * 公众号：贝恩聊架构
 * 全网同名，欢迎小伙伴们关注
 * Copyright© 2024 itbeien
 */
@Slf4j
@Component
public class CanalUtil {


    @Value("${canal-monitor-mysql.host}")
    String canalMonitorHost;

    @Value("${canal-monitor-mysql.port}")
    Integer canalMonitorPort;

    @Autowired
    private RedisClient redisClient;

    private final static int BATCH_SIZE = 10000;

    /**
     * 启动服务
     */
    // @Async("TaskPool")
    public void startMonitorSQL() {
        while (true) {
            CanalConnector connector = CanalConnectors.newSingleConnector(new InetSocketAddress(canalMonitorHost, canalMonitorPort), "0.104", "", "");
            int batchSize = 1000;
            int emptyCount = 0;
            try {
                connector.connect();
                connector.subscribe(".*\\..*");
                connector.rollback();
                int totalEmptyCount = 120;
                while (emptyCount < totalEmptyCount) {
                    Message message = connector.getWithoutAck(batchSize); // 获取指定数量的数据
                    long batchId = message.getId();
                    int size = message.getEntries().size();
                    if (batchId == -1 || size == 0) {
                        emptyCount++;
                        log.info("empty count :{} " , emptyCount);
                        try {
                            Thread.sleep(1000);
                        } catch (InterruptedException e) {
                        }
                    } else {
                        emptyCount = 0;
                        printEntry(message.getEntries());
                    }

                    connector.ack(batchId); // 提交确认
                    // connector.rollback(batchId); // 处理失败, 回滚数据
                }

                log.info("empty too many times, exit");

            } catch (Exception e) {
                log.error("成功断开监测连接!尝试重连:{}",e);
            } finally {
                connector.disconnect();
                //防止频繁访问数据库链接: 线程睡眠 10秒
                try {
                    Thread.sleep(10 * 1000);
                } catch (InterruptedException e) {
                    log.error("成功断开监测连接!尝试重连:{}",e);
                }
            }
        }
    }


    private  void printEntry(List<CanalEntry.Entry> entrys) {
        for (CanalEntry.Entry entry : entrys) {
            if (entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONBEGIN || entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONEND) {
                continue;
            }

            CanalEntry.RowChange rowChage = null;
            try {
                rowChage = CanalEntry.RowChange.parseFrom(entry.getStoreValue());
            } catch (Exception e) {
                throw new RuntimeException("ERROR ## parser of eromanga-event has an error , data:" + entry.toString(),
                        e);
            }

            CanalEntry.EventType eventType = rowChage.getEventType();
            System.out.println(String.format("================&gt; binlog[%s:%s] , name[%s,%s] , eventType : %s",
                    entry.getHeader().getLogfileName(), entry.getHeader().getLogfileOffset(),
                    entry.getHeader().getSchemaName(), entry.getHeader().getTableName(),
                    eventType));

            for (CanalEntry.RowData rowData : rowChage.getRowDatasList()) {
                //canal获取mysql数据库删除事件
                if (eventType == CanalEntry.EventType.DELETE) {
                    printColumn(rowData.getBeforeColumnsList());
                } else if (eventType == CanalEntry.EventType.INSERT) {//canal获取mysql数据库新增事件
                    printColumn(rowData.getAfterColumnsList());
                } else {
                    log.info("-------&gt; before");
                    printColumn(rowData.getBeforeColumnsList());
                    log.info("-------&gt; after");
                    printColumn(rowData.getAfterColumnsList());
                }
            }
        }
    }

    private  void printColumn(List<CanalEntry.Column> columns) {
        SysUser sysUser = new SysUser();
        for (CanalEntry.Column column : columns) { //一行数据库数据=一个对象
            log.info(column.getName() + " : " + column.getValue() + "    update=" + column.getUpdated());
            //获取字段名称和字段值,设置到实体类中
            if(column.getName().equalsIgnoreCase("id")){
                sysUser.setId(column.getValue());
            }else if(column.getName().equalsIgnoreCase("name")){
                sysUser.setName(column.getValue());
            }else if(column.getName().equalsIgnoreCase("age")){
                sysUser.setAge(Integer.valueOf(column.getValue()));
            }else if(column.getName().equalsIgnoreCase("email")){
                sysUser.setEmail(column.getValue());
            }
        }
        if(sysUser.getId()!=null && !"".equals(sysUser.getId())){
            String userJson = JSON.toJSONString(sysUser);
            redisClient.set(sysUser.getId(),userJson);//保存用户数据
        }
        log.info(sysUser.toString());
    }

}

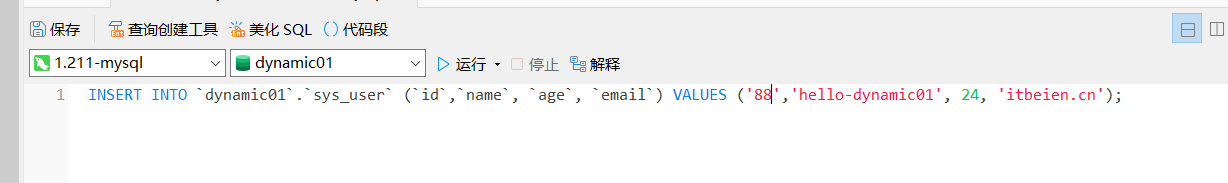

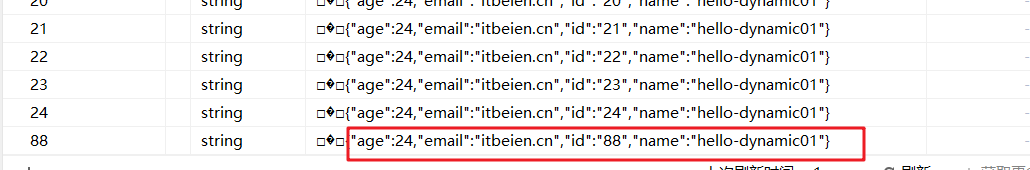

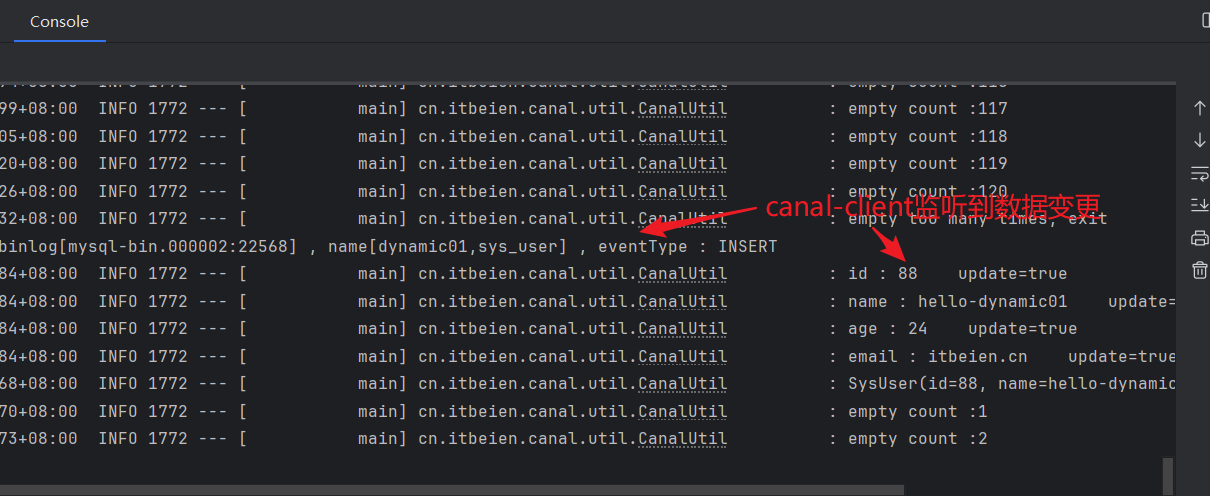

2 MySQL数据同步到Redis

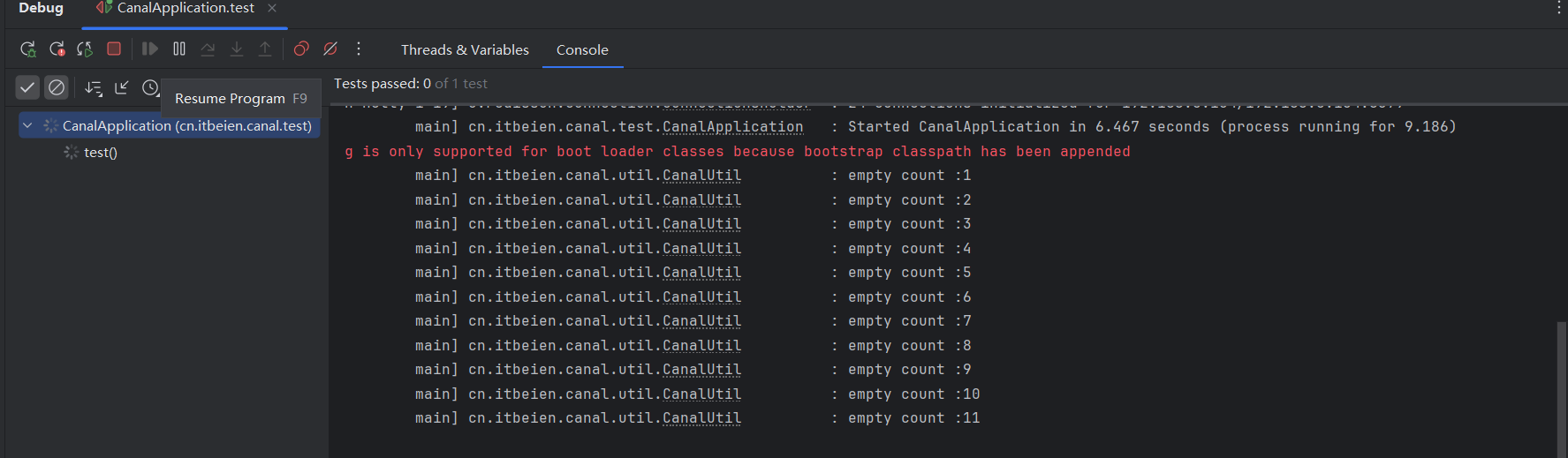

2.1 测试代码

package cn.itbeien.canal.test;

import cn.itbeien.canal.util.CanalUtil;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;


/**
 * @author itbeien
 * 项目网站：https://www.itbeien.cn
 * 公众号：贝恩聊架构
 * 全网同名，欢迎小伙伴们关注
 * Copyright© 2024 itbeien
 */
@SpringBootTest
public class CanalApplication {
    @Autowired
    private CanalUtil canalUtil;
    @Test
    public void test(){
        this.canalUtil.startMonitorSQL();
    }
}
